Used machine
EBOMOVE EM 140-MG60-30V
Company: Steigerwald Strahltechnik GmbH
Country: Germany
Field of application: Research & Development
Date of manufacture: 2010
Price: on request
Delivery date: from October 2022
TECHNICAL DATA
| Size | |
| Length (x) | 3.905 mm |
| Width (y) | 1.500 mm |
| Height (z) | 1.800 mm |
| Volume | 10,5 m³ |
| Workpiece movement | |
| Table (X/Y): | 2.750 mm / 1.000 mm |
| Travel (X): | 1.055 mm |
| Adm. table load: | 3.000 daN (3,0 t) |
| Rotary device | |
| DS 600C: | max. 2.000kg |
| 8-fold rotary device | |
| with tailstock | max. 8 x 25kg |
| Movement of the EB generator | |
| Travel (Y): | 850 mm |
| Travel (Z): | 1.269 mm |
| Pump set | |
| Hochvakuumpumpstand mit DIF High vacuum pump set with Diffusion pump Evacuation time approx. 40 min to 7.0 x10-4 mbar (CDE Shortening of pump time possible on request. |
|
| EB generator MOBILGEN Type | |
| High voltage/power | 60 kV/30 kW |
| Steuerung | |
| CNC Siemens Sinumerik 840D & S7-300 | |
| Other features | |
|
|

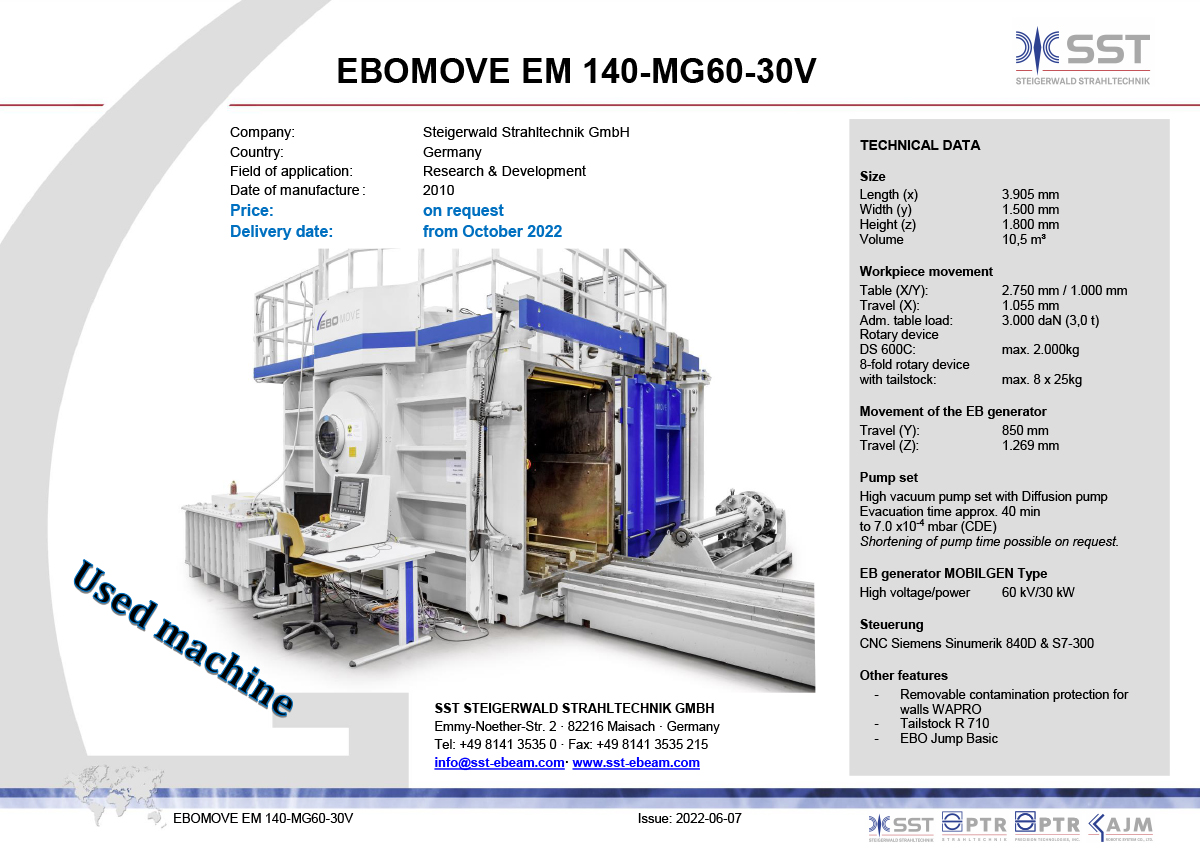

Download Data Sheet
